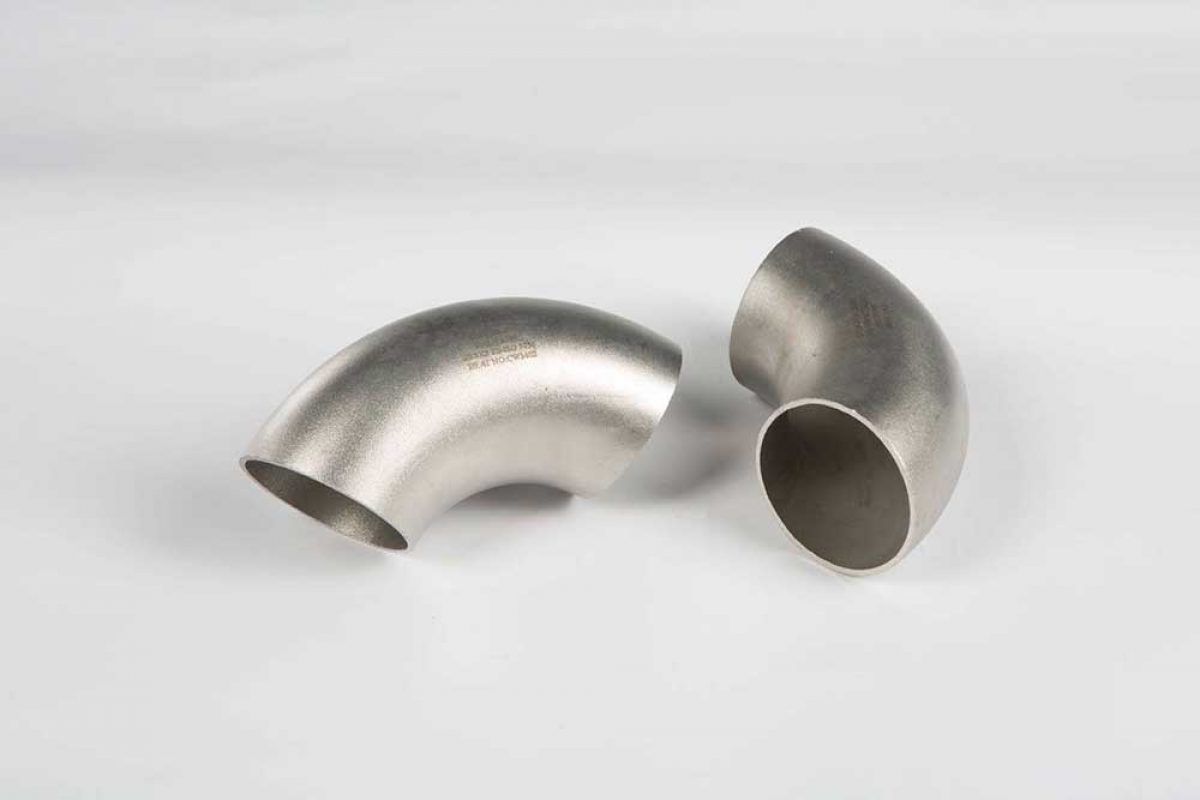

Stainless Steel Welded Elbow
Stainless(chrome) steel welded elbowsdirection of flow in piping systems 90° connection elements are used in order to change the source. And durable structures high corrosion resistance thanks, industrial facilities from a wide variety of liquid and gas transmission lines-are used in areas with confidence.
Arzenox as stock, 304 and 316 stainless(Chrome) made from steel 21,3 mm×1.6 mm 273mm×4 mm measuring range 3D-we offer a variety of 90 degree welded elbow. More large-scale demands for domestic/international supply network offer a solution.
Our products are high pressure provides long lasting performance in tough operating conditions and temperature resistance.
Standards
| Standard | Description |
|---|---|
| EN ISO 5251 | |
| DIN 2605 / EN 10253-1 |
Stock Quality Stainless Steel Elbow
| Quality | Description |
|---|---|
| 304 / 304L (1.4301 / 1.4307) | A variety of applications, suitable for high corrosion resistance and versatility. |
| 316 / 316L (1.4401 / 1.4404) | Ideal for challenging environments due to its superior corrosion resistance. |
Product Range
| Property | Description |
|---|---|
| Minimum - Maximum Thickness | 1.6 mm – 4,00 mm |
| Minimum - Maximum Cap | 21,3 mm 273 mm (until 914mm) |

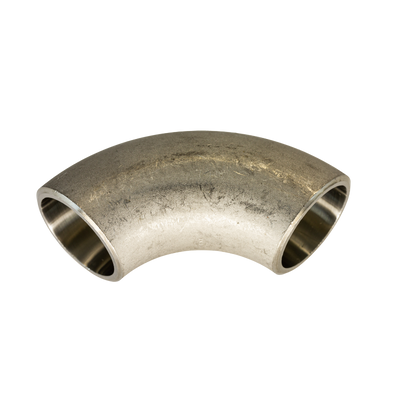

Stainless Pull (Seamless) Elbow
Stainless(Chrome) pull elbowsseamless (seamless) special production methods with connection pipes shaped elements. Without any source or seams thanks to this structure offers maximum safety and durability in applications that require high pressure and high temperature resistance.
Arzenox seamless elbows, ANSI/ASME B16.9 are manufactured in accordance with the standards, while heavy industrial plants, chemical process lines with high performance demands is widely available in power plants and other industrial areas.
Source location because it does not exist it does not create resistance to flow on the inner surface and is long lasting, provides a leak proof connection. Arzenox, various diameter-wall thickness, seamless elbow combinations options.
Standards
| Standard | Description |
|---|---|
| ANSI/ASME B16.9 |
Stock Quality Stainless Steel Elbow
| Quality | Description |
|---|---|
| 304 / 304L (1.4301 / 1.4307) | A variety of applications, suitable for high corrosion resistance and versatility. |
| 316 / 316L (1.4401 / 1.4404) | Ideal for challenging environments due to its superior corrosion resistance. |
Product Range
| Quality | Description |
|---|---|
| Minimum - Maximum Thickness |
1.6 mm – 4,00 mm |
| Minimum - Maximum Cap |
21,3 mm 273 mm (until 914mm) |
Stainless Steel Cap (End Cap)
Stainless(Chrome) kepterminate the flow in piping system, or a temporary/permanant used for shutting down the line welded connection element. S system stems in Part Three, which closes securely and the content pipeline to prevent contact with the atmosphere.
High corrosion resistance, pressure resistance and long lasting structurein the lines and process, food and chemical plants, petrochemical plants and power stations are widely preferred in applications.
Arzenoxin various diameters and wall thicknesses to ANSI/ASME B16.9 international standards such as 304L, 316L and so on quality classes stainless(chrome) steel caps bearing Sealing Solutions provides safe and quality in industrial systems in stock.
Standards
| Standard | Description |
|---|---|
| ANSI/ASME B16.9 |
Stock Quality Stainless Steel Elbow
| Quality | Description |
|---|---|
| 304 / 304L (1.4301 / 1.4307) | A variety of applications, suitable for high corrosion resistance and versatility. |
| 316 / 316L (1.4401 / 1.4404) | Ideal for challenging environments due to its superior corrosion resistance. |
Product Range
| Quality | Description |
|---|---|
| Minimum - Maximum Thickness | 2,11 mm 9,53 mm |
| Minimum - Maximum Cap | 21,3 mm 273 mm (914,4 mm.) |

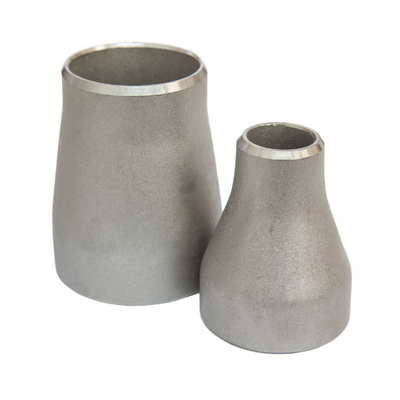

Stainless Steel Reducer
Stainless(Chrome) reductionthe basic connection of pipelines with different diameters are elements that are used in combination. A large diameter pipeline to connect a smaller diameter line (or vice versa) is used for the purpose of. The continuity of the flow, the balance and the pressure of the system plays a critical role in terms of ensuring efficiency.
Stainless(Chrome) reduction are divided into two main categories according to the need of the application:
- Concentric Reducer: Resumes are preferred when the fastener axis of the fluid in a linear fashion. Liquid, gas or solid without changing the direction of fluid flow allows you to maintain. The integrity of the system provides both aesthetic and technical terms in a symmetric structure.
- Eccentric Reducer: The changing of the axis of fluid is used in situations. He was evacuated with free flow of liquids, especially in order to prevent air lock in the line is preferred. Lower or upper regulates the orientation of the alignment system in a flexible manner according to the requirement.
Standards
| Standard | Description |
|---|---|
| EN ISO 5251 | |
| DIN 2616 |
Stock Quality Stainless Steel Elbow
| Quality | Description |
|---|---|
| 304 / 304L (1.4301 / 1.4307) | A variety of applications, suitable for high corrosion resistance and versatility. |
| 316 / 316L (1.4401 / 1.4404) | Ideal for challenging environments due to its superior corrosion resistance. |
Product Range
| Quality | Description |
|---|---|
| Minimum - Maximum Thickness | 1.6 mm – 4,00 mm |
| Minimum - Maximum Cap | 26,9 mm 273 mm (until 508mm) |

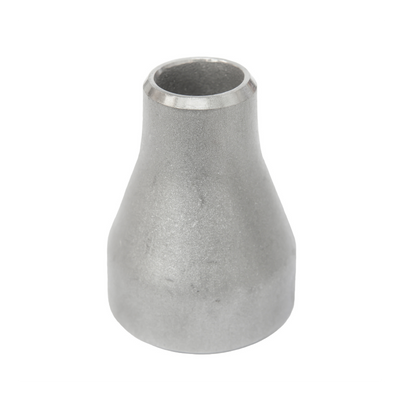

Reduction Of Stainless Steel Pull
Stainless(chrome) steel tensile reduction pipelines with different diameters that allows seamless connectivity to connect to each other elements. Pull (seamless) are produced from the pipes do not contain the source line; this high pressure, temperature and sealing applications that require maximum safety and durability.
Concentric or eccentric owing to their structure, the flow direction and in the direction of the axis of the system optimum design and installation they offer flexibility. A minimum flow through the structure at the inner surface of the seamless production, improves system efficiency by creating resistance and long lasting use.
High corrosion resistance, mechanical strength and hygienic surface features stainless tensile reduction; process lines, chemical, food and pharmaceutical manufacturing facilities, petrochemical industry, power plants and piping systems which require high performance widely preferred.
Arzenoxdifferent diameter and wall thickness options in ANSI/ASME B16.9, seamless concentric and eccentric in accordance with international standards and similar reduction in the stocks bearing, industrial projects reliable and high quality solutions.
Standards
| Standard | Description |
|---|---|
| ANSI/ASME B16.9 |
Stock Quality Stainless Steel Elbow
| Quality | Description |
|---|---|
| 304 / 304L (1.4301 / 1.4307) | A variety of applications, suitable for high corrosion resistance and versatility. |
| 316 / 316L (1.4401 / 1.4404) | Ideal for challenging environments due to its superior corrosion resistance. |
Product Range
| Quality | Description |
|---|---|
| Minimum - Maximum Thickness | 1.6 mm – 4,00 mm |
| Minimum - Maximum Cap | 26,9 mm 273 mm (until 508mm) |

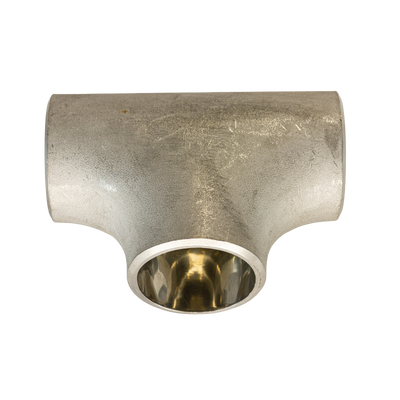

Stainless Tee (T-Piece)
Stainless(Chrome) tee's to split the flow in pipelines, or a new line to the existing system used for the purpose of connecting a three-way connection elements. An output line at right angles from the main pipe that is allocated by providing an efficient and safe manner in the direction of the flow directs.
High corrosion resistance, strength and long lasting performance stainless tee's especially, liquid, gas, chemical and transport systems, food and beverage lines, are widely used in petrochemical plants and industrial process systems.
Arzenoxdifferent diameter, wall thickness, and the connection type with options for both seamless and welded types of stainless Tee has it in stock. Our products are manufactured in accordance with international standards and can be used safely in tough conditions.
Standards
| Standard | Description |
|---|---|
| EN ISO 5251 | |
| 2615 DIN / EN 10253-3/4 |
Stock Quality Stainless Steel Elbow
| Quality | Description |
|---|---|
| 304 / 304L (1.4301 / 1.4307) | A variety of applications, suitable for high corrosion resistance and versatility. |
| 316 / 316L (1.4401 / 1.4404) | Ideal for challenging environments due to its superior corrosion resistance. |
Product Range
| Quality | Description |
|---|---|
| Minimum - Maximum Thickness | 2 mm – 4,00 mm |
| Minimum - Maximum Cap | 20 mm 273 mm (until 508mm) |

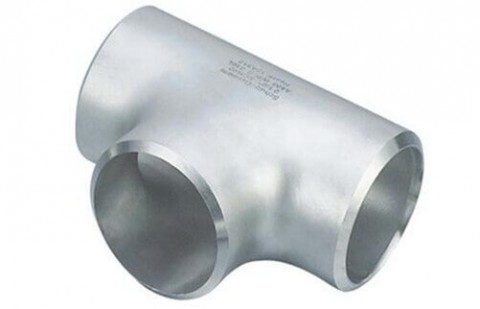

Stainless Steel Tee (T-Piece)
Stainless(Chrome) seamless The tee's, to separate the two directions of flow in the pipeline, that is used in order to integrate into the existing system or a new line, three way link the elements. Seamless (pull) the pipes are produced from source do not place this high pressure, temperature and ensures maximum safety for applications that require sealing.
Allocated structures at right angles from the main pipe line, guiding the direction of flow efficiently and securely protects the integrity of the system. At a minimum flow resistance welded structures by means of the inner surface and creates long-lasting comfort.
High corrosion resistance, mechanical strength and structure with hygienic stainless(Chrome) seamless The tee'schemical process lines, Food and beverage manufacturing facilities, petrochemical, power plants, and industrial piping systems are preferred.
Arzenoxin various diameters and wall thicknesses to ANSI/ASME B16.9, seamless and similar international standards Tee by keeping it reliable and quality products in stock solutions.
Standards
| Standard | Description |
|---|---|
| ANSI/ASME B16.9 |
Stock Quality Stainless Steel Elbow
| Quality | Description |
|---|---|
| 304 / 304L (1.4301 / 1.4307) | High corrosion resistance and very versatilitywith various applications for suitable. |
| 316 / 316L (1.4401 / 1.4404) | Superior corrosion resistance thanks challengingenvironments for ideal. |
Product Range
| Quality | Description |
|---|---|
| Minimum - Maximum Thickness | 2,11 mm – 9,27 mm |
| Minimum - Maximum Cap | 21,3 mm – 273 mm (609,6 mm up) |

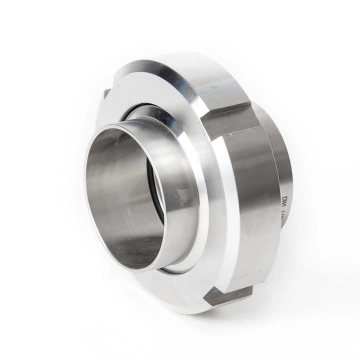

Record for months-switched a stainless steel ISO
ISO records switched month, two ports, allowing it to be combined with the speed and tightness in the pipeline, especially stainless steel fittings. “For months” switched expression, assembly and disassembly operations easily with the help of the availability of the key refers to.
Technical Specifications
Areas Of Use
Advantages
